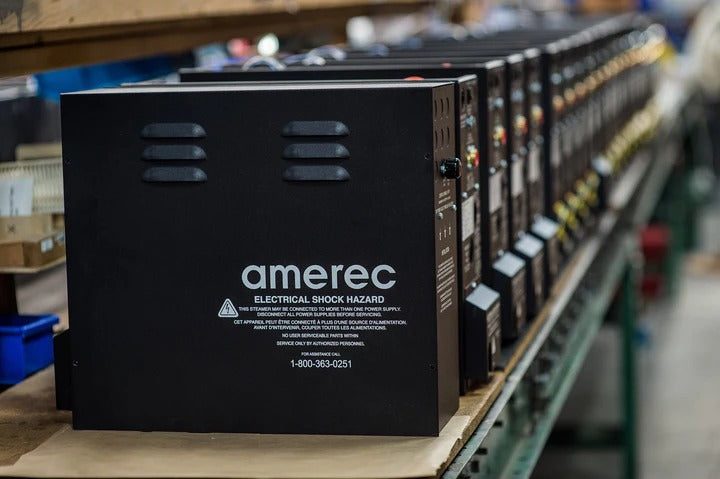

Amerec AK Series 7.5kW Steam Shower Generator

$862.50 OFF $862.50 OFF
Original price $2,875.00
Original price $2,875.00 - Original price $2,875.00
Original price $2,875.00
Current price $2,012.50
$2,012.50 - $2,012.50
Current price $2,012.50
+ FREE SHIPPING

The Amerec AK7.5 is engineered for home and day spa steam baths up to 200 adjusted cubic feet (ACF).

Constructed of corrosion-resistant stainless-steel, the Amerec AK7.5 steam shower generator provides years of dependable, worry-free operation. The AK7.5 includes professional-grade heating elements, modular snap-in control connections, durable electronic components and parts, electronic water level control system, and a variety of other innovative features.

Amerec AK Series steam generators are designed to provide the most consistent steam production and temperature for a relaxing steam bath. The AK 7.5 uses a Sequential Temperature Control which provides a consistent flow of soft steam without unexpected temperature variations.

The Amerec AK7.5 steamer’s stainless-steel tank and water probes deliver long-lasting strength and durability. The AK7.5 steam shower unit is equipped with removable heating elements for easy and economical service. Homeowners, health clubs, and day spas rely on Amerec AK Series steam generators for long-lasting safety, reliability, and efficiency.

The Amerec AK7.5 7.5kW steam generator is available in 240Vor 208Vand can be field wired for single-phase or three-phase (PH) configurations.

The Amerec AK7.5 generator requires the available K3 control for operation which regulate bathing duration and temperature, or the R30K 30-minute timer. Each control package comes with a matching finish ComfortFlo steam head.

We recommend the available Amerec ADK Automatic Drain System with your AK7.5 steam unit which drains the generator tank after each use to help prevent calcification and lime build-up of the unit.

Amerec AK Series generators can be linked together to heat steam shower enclosures larger than 550 cubic feet. Connection cables are sold separately, and each generator requires a ComfortFlo steam head.

The Amerec AK7.5 steam bath generator carries a limited lifetime warranty and is fully serviceable. All Amerec steam room generators are UL, CSA, and CE listed for your safety.

Features
  • Sequential temperature control for consistent flow
  • Stainless steel tank
  • Industrial grade, serviceable heating elements
  • Durable electronic components
  • Electronic water-level control system
  • Low voltage safety control circuits
  • Available Auto Drain automatic draining system
  • Ability to field wire for 1-phase or 3-phase phase
  • Ability to connect multiple generators to heat steam baths larger than 550 cubic feet
  • Operates with inside/outside shower, on/off, time/temperature controls
  • Full 3/4" port drain valve
  • ASME safety valve
  • UL/CSA/CE listed
Includes
  • 7.5KW steam bath generator
  • Installation and operation manual
  • Limited warranty
Specifications

Model

Minimum Adjusted Cubic Feet

Maximum Adjusted Cubic Feet

Kilowatt Rating (KW)

Shipping Weight (Lbs.)

AC Voltage

DC Voltage

Phase

Nominal Amperage

Recommended Protective Device

Recommended Minimum Copper Wire Supply

Water Supply Connection

Generator Steam Line Connection

Steam Head Connection

Drain Connection

Safety Relief Valve Connection

Safety Relief Valve PSIG

Control "Rough In" Cut Out

Control Sensor
Cable

Control Sensor "Rough In" Cut Out

Generator Control Connection

Generator Control
Cable

Width In Inches

Depth In Inches

Height In Inches

AK7.5

80

200

7.5 KW

35 lbs

240V AC

5V DC

Single Phase

31 Amps

40 Amp

8 AWG

3/8" NPT

1/2" NPT

1/2" NPT

3/4" NPT

3/4" NPT

10 PSIG

2-3/8" Diameter

25', 2 Conductor, 22 AWG,
Shielded Cable

7/8" Diameter

8 Pin, Snap-In Connector

25', 8 Conductor, 28 AWG,
Shielded Cable

16-1/2"

6-1/4"

15"
